Introduction to the Specialized Chassis for Aerial Work Platforms from Hebei Dongman Special Vehicle Manufacturing Plant

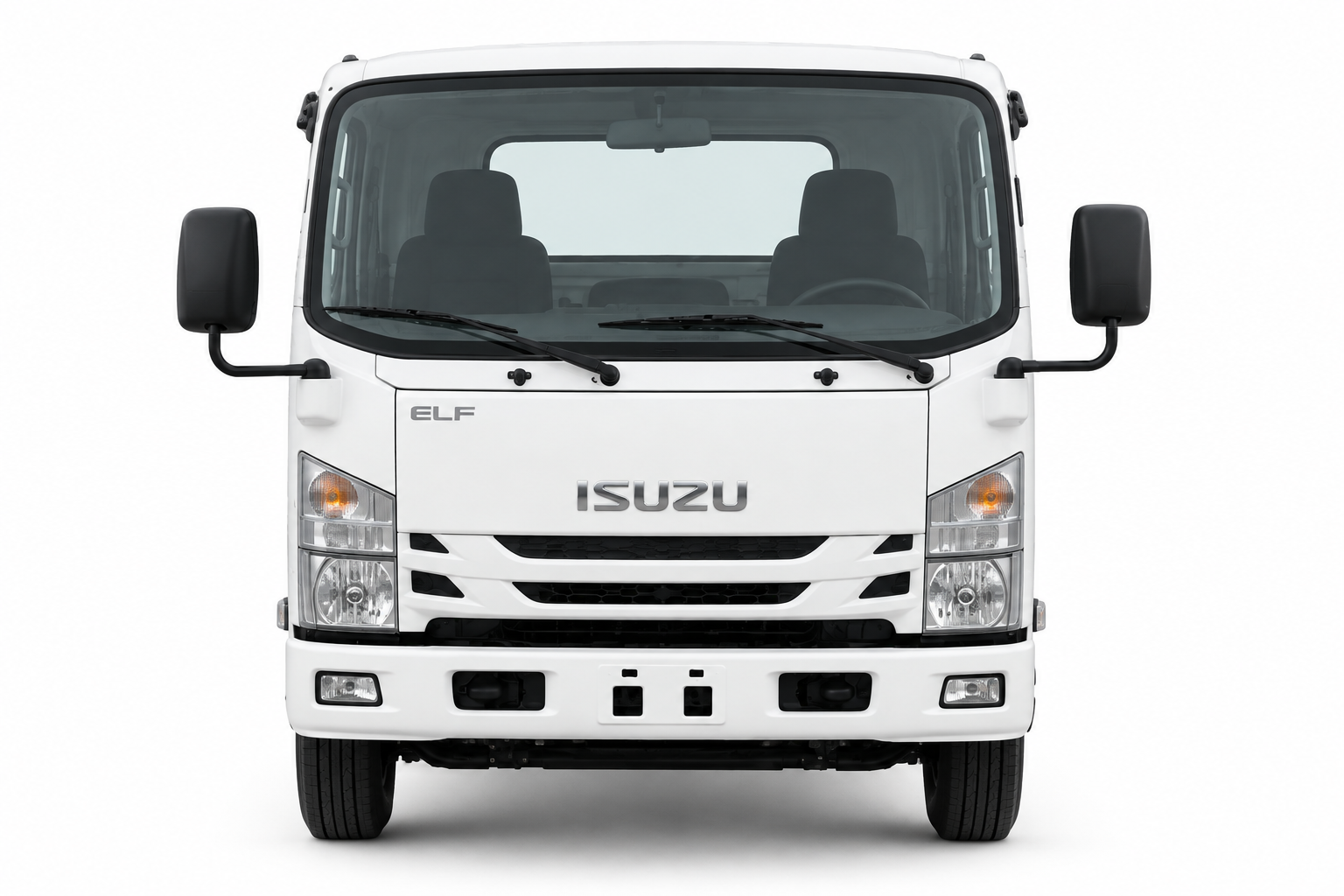

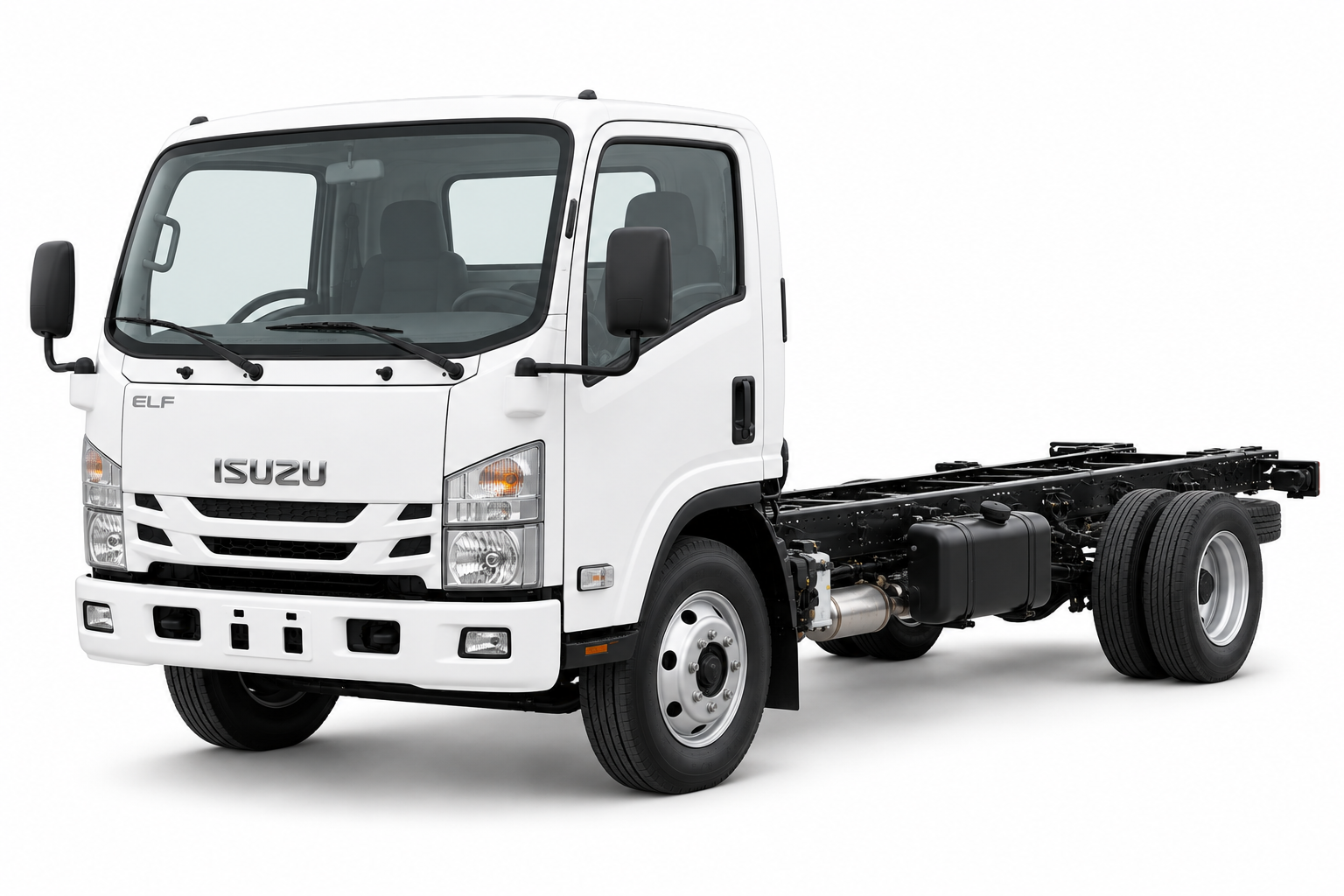

Isuzu M100 Air Brake Chassis (Series) Product Specifications Table

Chassis Model: QL1041BUFAY

I. Powertrain

Engine Model: 4KB1-TCG60 (Isuzu Technology)

Displacement: 2.499 L (2499 cc)

Power: 96 kW / 130 horsepower

Transmission: Isuzu MSB 5-speed transmission

Fuel Tank: Steel fuel tank, 100 L capacity

II. Cab Configuration

Cab: Single-row wide-body cab (width 1,880 mm)

Comfort/Convenience Features: Factory-installed air conditioning, central locking, power windows and doors, remote key fob

III. Chassis/Axle Load/Drivetrain

Front Axle: 2.5 metric tons

Rear Axle: 5 metric tons

Wheelbase: 2,795 mm

Tire Size: 7.00R16LT (labeled as 7.00RI6LT in the image; standard notation is 7.00R16LT)

Braking System: Air brakes

IV. Vehicle Features

Equipped with an Isuzu 4KB1 engine paired with an MSB 5-speed transmission—proven, durable, and fuel-efficient;

130 horsepower / 96 kW of ample power output, suitable for urban delivery and short-to-medium-distance logistics;

Air brakes, 2.5T front axle / 5T rear axle, ensuring reliable load-carrying capacity and braking performance;

Single-cab with a width of 1,880 mm, featuring air conditioning, power windows, central locking, and a remote key fob for a comfortable driving experience;

100-liter steel fuel tank ensures a reliable driving range; 2,795 mm wheelbase offers a balance of maneuverability, off-road capability, and body space.
